2.2 Gal Chopper Gas Tank

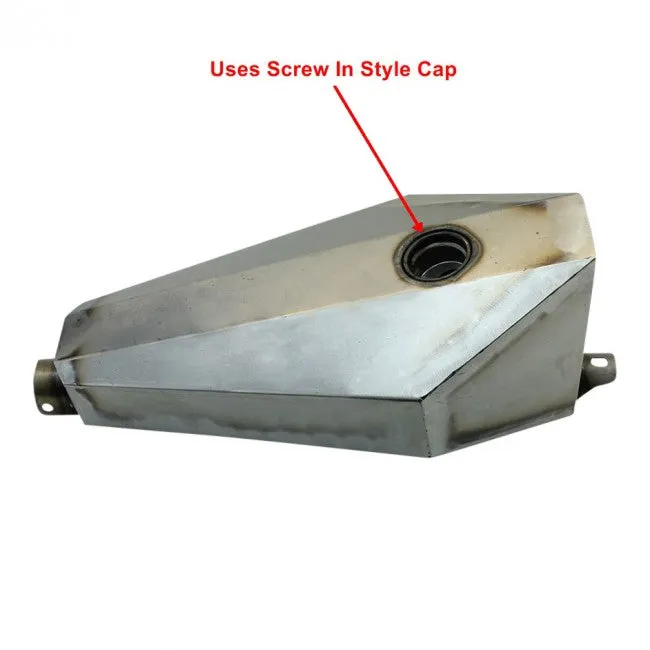

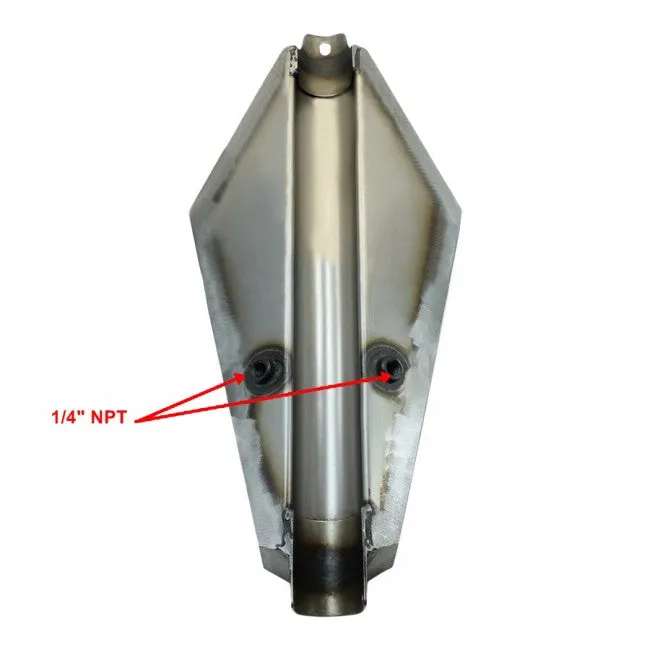

The tank uses a screw-in-style gas cap and has threaded ports for 1/4" petcocks.

Even though these tanks are pressure tested from the factory. It is recommended to seal any custom tank with a  before painting. Also, assure there is no stress on the when the tank is mounted.

Dimensions:
Top Length: 18" Bottom Length: 17" Rear Width: 4"

Front Width: 4" Rear Height: 3" Front Height: 8"

Front Tunnel Height: 1.5" Rear Tunnel Height: 1.5" Top Tunnel Width: 1-13/16"

Bottom Tunnel Width: 1-13/16" Tunnel Length: 17"
