Fuelab
62710-0
Surge Tanks

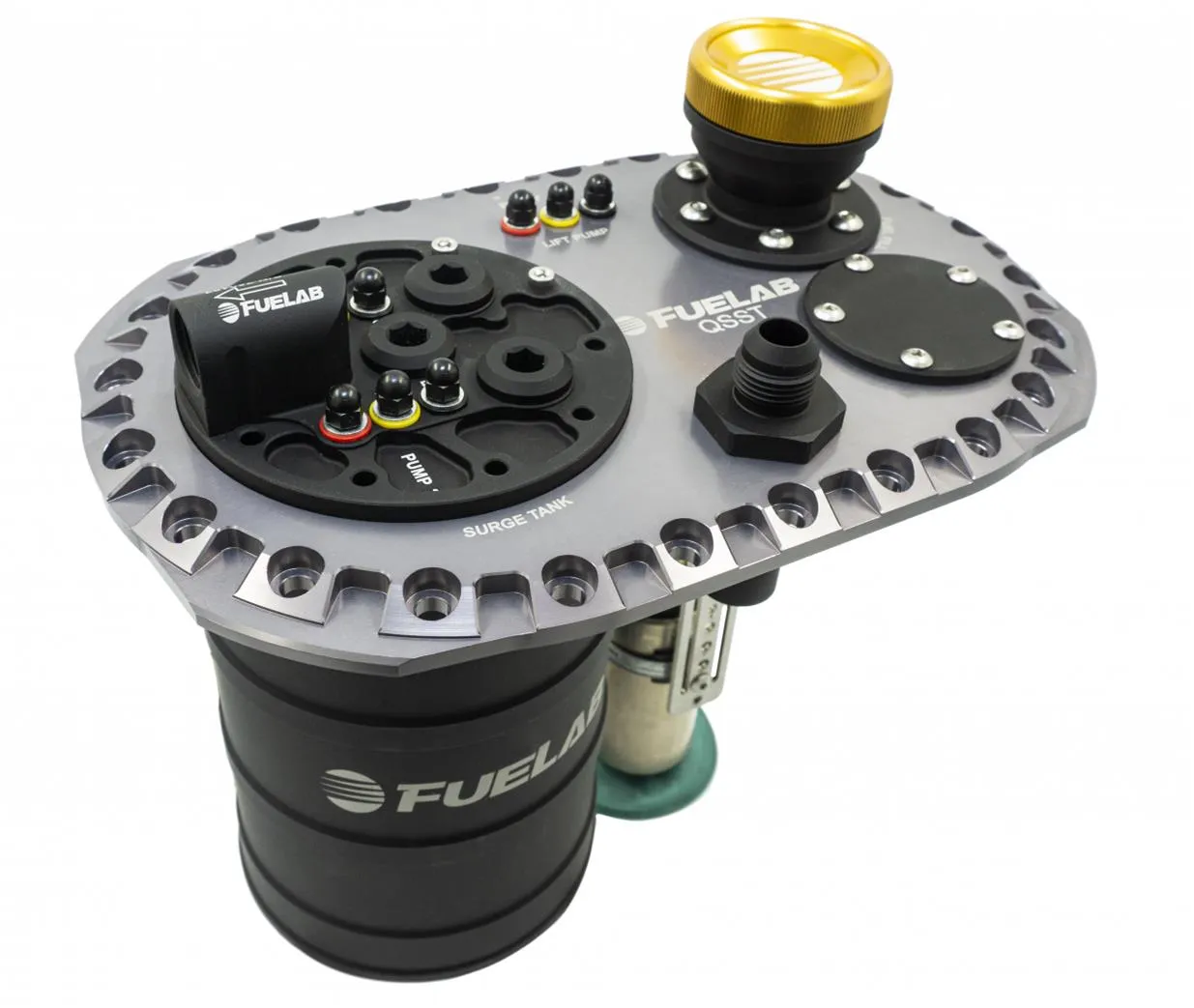

FUELAB Titanium fuel cell quick-service surge tanks (QSST) come base as a "bare" unit without a lift pump and with an empty fuel pump hanger in the surge tank. (FUELLAB has options to add three different lift pumps, five different surge pumps, remote fuel fill, fuel level sensor, and a fuel tank vent kit.) Quick-service surge tanks are compatible with both brushed or brushless lift and surge pump options.
Product features:
* Quick Service Surge Tank for fast pump service
* Provides protection against fuel slosh from standard fuel cell pump hangers
* Fits the industry standard 24-bolt fill plate bolt pattern
* Gasoline, Ethanol (E85), and Methanol compatible
* Rollover flap protection
* Fuel tank vent with rollover protection
* Gaskets and hardware included
* Stock with empty fill neck hole to give you options
* WHAT MAKES THE FUELAB QSST BETTER?
FUELAB's Quick Service Surge Tank is exactly that. You can service your Surge Tank Pumps in minutes. With only 10 bolts on top, you can pull the Surge Tank Pump Hanger out of the top of the cell and service your pumps quickly! Whereas most competitors require you to pull the entire 24 bolt plate, then remove the surge tank housing from the bottom to finally access your pumps. FUELAB units are compatible with Brushed and Brushless pumps for both the Lift Pump and the Surge Tank Pump(s), or a combination of the two using the same Base Plate. Base plates come standard in two enticing anodized colors, Titanium and Gold.
Kit includes:
* FUELAB QSST base plate and surge tank
* Fuel tank vent with rollover protection
* Lift pump hanger with pump mount
* 3-Terminal for option of brushed or brushless lift pump
* Fuel level sender block-off plate and gasket
* Open fuel filler hole for customization (gasket included)
* Empty dual pump fuel surge tank hanger (fits brushed or brushless pumps)
* Corrugated fuel hose for lift pump into surge tank
* 1/4 in.-28 hardware to mount to most fuel cell nut rings
(NOTE: Don't forget to add on your FUELAB Fuel Filler Kit, Fuel Level Sender, and Fuel Cell Vent Kit!)
